Forewell Shielded Power Inductors , High Current Power Inductor Alloy Powder

SMD Molding Power Inductor Copper Wire Toy Electronic Product

Features:

• Magnetically shielded construction, low DC resistance；
• The use of magnetic iron powder ensure capability for large current；
• Low audible core noise；
• Ideal for DC-DC converter applications in hand held personal computer and etc；
• Frequency Range: up to 30MHz；
• RoHS REACH compliant

Applications:

• Smart phone,MID,
• Next-generation mobile devices with multifunction such as adding color TV and digital movie cameras；
• Flat-screen TVs, blue-ray disc recorders, set top box；
• Portable gaming devices, personal navigation systems, personal multimedia devices；
• Automotive systems；
• Telecomm base stations
• Consumer Products.

Specification:

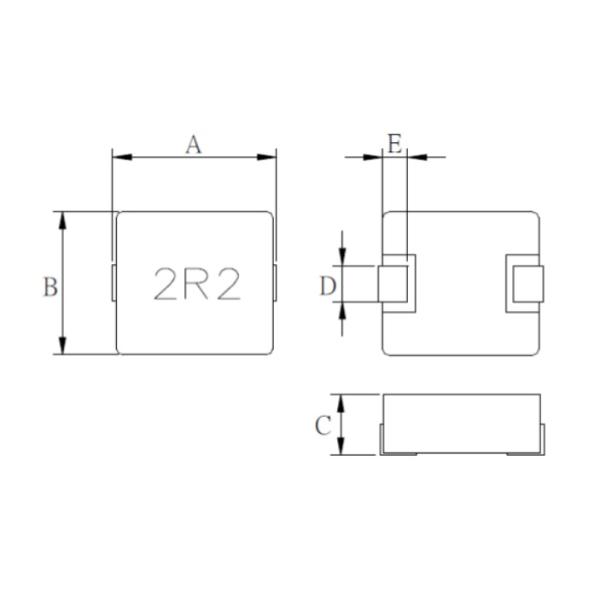

Dimensions

Specification

NOTES:

• DC current (Idc) that will cause an approximate △T of 40℃
• DC current (Isat) that will cause Lo to drop approximately 20%
• All test data is referenced to 25℃ ambient
• Operating Temperature Range -55℃ to +150℃
• The part temperature (ambient + temp rise) should not exceed 150℃ under the worst operating conditions. Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application.

Packaging Quantity(pcs)

Forewell Shielded Power Inductors

High Current Shielded Power Inductors

Alloy Powder High Current Power Inductor
