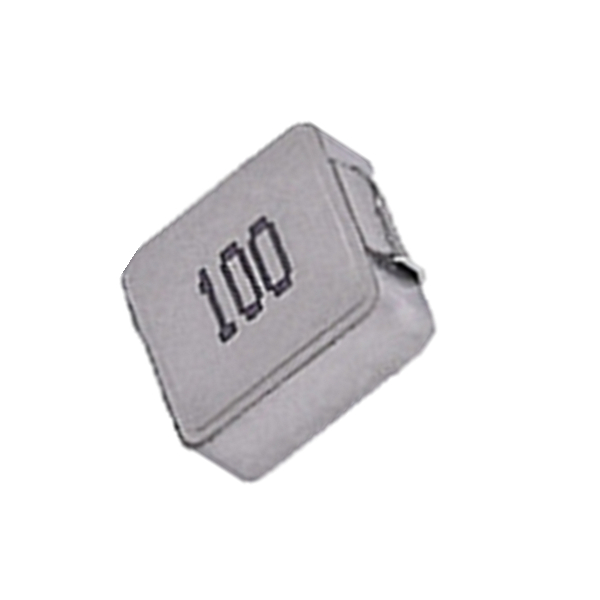

OEM Integrated Circuit Inductor Magnetically , 10UH Molding Power Inductor

SMD Molding Power Inductor Integrated Inductor For Laptop Motherboard 0.1~47uh

Features:

• Magnetically shielded construction, low DC resistance；
• Frequency Range: up to 29MHz；
• Ideal for DC-DC converter applications in hand held
• RoHS compliant
• Reliable quality

Applications

• Smart phone,MID；
• Next-generation mobile devices with multifunction such as adding color TV and digital movie cameras；
• Flat-screen TVs,
• Blue-ray disc recorders
• Notebooks, desktop computers, servers, graphic cards；

Specification:

Dimensions

Specification

Packaging Information:

NOTES:

• DC current (Idc) that will cause an approximate △T of 40℃
• DC current (Isat) that will cause Lo to drop approximately 20%
• All test data is referenced to 25℃ ambient
• Operating Temperature Range -55℃ to +120℃
• The part temperature (ambient + temp rise) should not exceed 120℃ under the worst operating conditions.
• Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions
• all affect the part temperature. Part temperature should be verified in the end application.

Packaging Quantity(pcs)

OEM Integrated Circuit Inductor

Integrated Circuit Inductor Magnetically

10UH Molding Power Inductor

OEM Integrated Circuit Inductor Magnetically , 10UH Molding Power Inductor Images
